UdpTraceListener - a UDP TraceListener compatible with log4net/log4j

March 13, 2013

This class is a TraceListener implementation that uses the log4j XML format and sends the XML to a UDP socket. This means you can configure a trace listener to send all your logs to something like http://log2console.codeplex.com.. There is also Harvester which has a TraceListener implementation for streaming over a network.

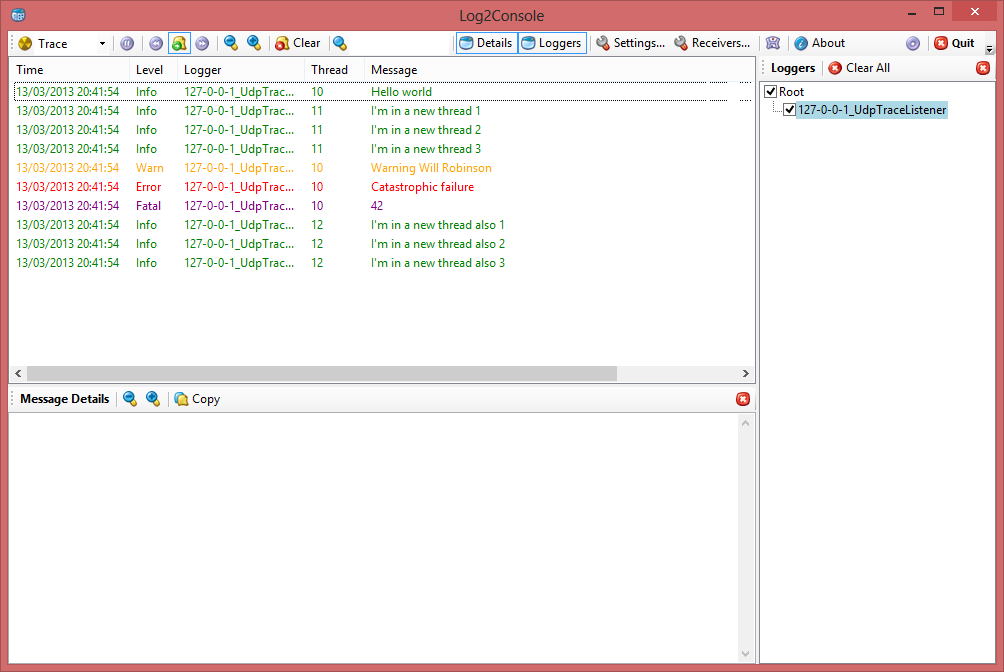

udptracelistener

Just configure a new UDP receiver in log4console and they messages will start to stream through. This works nicely with LightSpeed, where you can configure it to send its SQL statements to a TraceListener.

Feel free to include the source wherever you need it, it’s under an MIT licence.

class Program
{
static void Main(string[] args)
{
Trace.Listeners.Add(new UdpTraceListener());
Thread thread1 = new Thread(() => {
Trace.WriteLine("I'm in a new thread 1");
Trace.WriteLine("I'm in a new thread 2");
Trace.WriteLine("I'm in a new thread 3");
});
Thread thread2 = new Thread(() =>
{
Trace.WriteLine("I'm in a new thread also 1");
Trace.WriteLine("I'm in a new thread also 2");
Trace.WriteLine("I'm in a new thread also 3");
});
thread1.Start();
Trace.WriteLine("Hello world");
Trace.WriteLine("Warning Will Robinson", "warning");
thread2.Start();
Trace.WriteLine("Catastrophic failure", "error");
Trace.WriteLine(42, "fatal");
}
}
view raw gistfile1.cs hosted with ❤ by GitHub

public class UdpTraceListener : TraceListener
{
// For 3.5/2 you can use a List but the class is no longer thread safe.
//private Stack<string> _messageBuffer;
private UdpClient _udpClient;
private ConcurrentStack<string> _messageBuffer;
private string _loggerName;
private static readonly string _xmlPrefix = "log4j";
private static readonly string _xmlNamespace = "http://jakarta.apache.org/log4j/";
public override bool IsThreadSafe
{
get
{
return true;
}
}
public UdpTraceListener()
: this("localhost", 7071, "UdpTraceListener")
{
}
public UdpTraceListener(string host, int port, string loggerName)
{
_loggerName = loggerName;
_messageBuffer = new ConcurrentStack<string>();
_udpClient = new UdpClient();
_udpClient.Connect(host, port);
}
public override void Write(string message)
{
Write(message, "info");
}
public override void WriteLine(string message)
{
Write(message, "info");
Flush();
}
public override void WriteLine(string message, string category)
{
_messageBuffer.Push(GetEventXml(message, category));
Flush();
}
public override void Write(string message, string category)
{
_messageBuffer.Push(GetEventXml(message, category));
}
private string GetEventXml(string message, string category)
{
// The format:
//<log4j:event logger="{LOGGER}" level="{LEVEL}" thread="{THREAD}" timestamp="{TIMESTAMP}">
// <log4j:message><![CDATA[{ERROR}]]></log4j:message>
// <log4j:NDC><![CDATA[{MESSAGE}]]></log4j:NDC>
// <log4j:throwable><![CDATA[{EXCEPTION}]]></log4j:throwable>
// <log4j:locationInfo class="org.apache.log4j.chainsaw.Generator" method="run" file="Generator.java" line="94"/>
// <log4j:properties>
// <log4j:data name="log4jmachinename" value="{SOURCE}"/>
// <log4j:data name="log4japp" value="{APP}"/>
// </log4j:properties>
//</log4j:event>
string level = "INFO";
if (string.IsNullOrEmpty(category))
category = "info";
switch (category.ToLower())
{
case "fatal":
level = "FATAL";
break;
case "warning":
case "warn":
level = "WARN";
break;
case "error":
level = "ERROR";
break;
case "debug":
level = "DEBUG";
break;
case "trace":
level = "TRACE";
break;
default:
break;
}
StringBuilder builder = new StringBuilder();
XmlWriterSettings settings = new XmlWriterSettings();
settings.OmitXmlDeclaration = true;
XmlWriter writer = XmlWriter.Create(builder, settings);
WriteLog4jElement(writer, "event");
writer.WriteAttributeString("logger", _loggerName);
writer.WriteAttributeString("level", level);
writer.WriteAttributeString("thread", Thread.CurrentThread.ManagedThreadId.ToString());
writer.WriteAttributeString("timestamp", XmlConvert.ToString(ConvertToUnixTimestamp(DateTime.Now)));
WriteLog4jElement(writer, "message");
writer.WriteCData(RemoveInvalidXmlChars(message));
writer.WriteEndElement();
WriteLog4jElementString(writer, "NDC", "");
WriteLog4jElementString(writer, "throwable", "");
WriteLog4jElement(writer, "locationInfo");
writer.WriteAttributeString("class", "");
writer.WriteAttributeString("run", "");
writer.WriteAttributeString("file", "");
writer.WriteAttributeString("line", "1");
writer.WriteEndElement();
WriteLog4jElement(writer, "properties");
WriteLog4jElement(writer, "data");
writer.WriteAttributeString("name", "log4jmachinename");
writer.WriteAttributeString("value", Environment.MachineName);
writer.WriteEndElement();
WriteLog4jElement(writer, "data");
writer.WriteAttributeString("name", "log4japp");
writer.WriteAttributeString("value", Assembly.GetCallingAssembly().FullName);
writer.WriteEndElement();
writer.WriteEndElement();
writer.WriteEndElement();
writer.Flush();
return builder.ToString();
}
private string RemoveInvalidXmlChars(string text)
{
var validXmlChars = text.Where(x => XmlConvert.IsXmlChar(x)).ToArray();
return new string(validXmlChars);
}
private void WriteLog4jElement(XmlWriter writer, string name)
{
writer.WriteStartElement(_xmlPrefix, name, _xmlNamespace);
}
private void WriteLog4jElementString(XmlWriter writer, string name, string value)
{
writer.WriteElementString(_xmlPrefix, name, _xmlNamespace, value);
}
private double ConvertToUnixTimestamp(DateTime date)
{
DateTime epoch = new DateTime(1970, 1, 1, 0, 0, 0, 0);
TimeSpan sinceEpoch = date.ToUniversalTime() - epoch;
return Math.Floor(sinceEpoch.TotalMilliseconds);
}
public override void Flush()
{
foreach (string xmlMessage in _messageBuffer)
{
byte[] payload = Encoding.UTF8.GetBytes(xmlMessage);
_udpClient.Send(payload, payload.Length);
}
_messageBuffer.Clear();
base.Flush();
}
protected override void Dispose(bool disposing)
{
Flush();
_udpClient.Close();
base.Dispose(disposing);
}
public override void TraceEvent(TraceEventCache eventCache, string source, TraceEventType eventType, int id, string format, params object[] args)
{
switch (eventType)
{
case TraceEventType.Critical:
case TraceEventType.Error:
WriteLine(string.Format(format, args), "error");
break;
case TraceEventType.Verbose:
WriteLine(string.Format(format, args), "debug");
break;
case TraceEventType.Warning:
WriteLine(string.Format(format, args), "warn");
break;
case TraceEventType.Information:
case TraceEventType.Resume:
case TraceEventType.Start:
case TraceEventType.Stop:
case TraceEventType.Suspend:
case TraceEventType.Transfer:
default:
WriteLine(string.Format(format, args), "error");
break;
}
}
}
view raw gistfile1.cs hosted with ❤ by GitHub
